Waterless SPT Coring Drilling Rig With Air-Cooled Diesel Engine

Name: Waterless SPT Coring Drilling Rig With AirCooled Diesel Engine
Brand: SHITAN
Price: 1 USD

Wholesale Waterless SPT Coring Drilling Rig With Air-Cooled Diesel Engine from china suppliers

Brand Name : SHITAN

Model Number : ST-30

Certification : ISO,CE

Place of Origin : China

MOQ : 1SET

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 1000set

Delivery Time : 5-8 workday

Packaging Details : Wooden Box

Name : ST-30 coring drilling rig

Max drilling depth : 30meters

Drilling diameter : 120mm

Rod length : 1meter

Rod diameter : 60mm

Lifting force : 8T

Moving speed : 2km/h

Engine : Air-cooled single cylinder

Drilling method : hitting

SPT wight : 63.5kg

Weight : 1.1T

size : 2800*100*1600mm

Contact Now

Product Description:

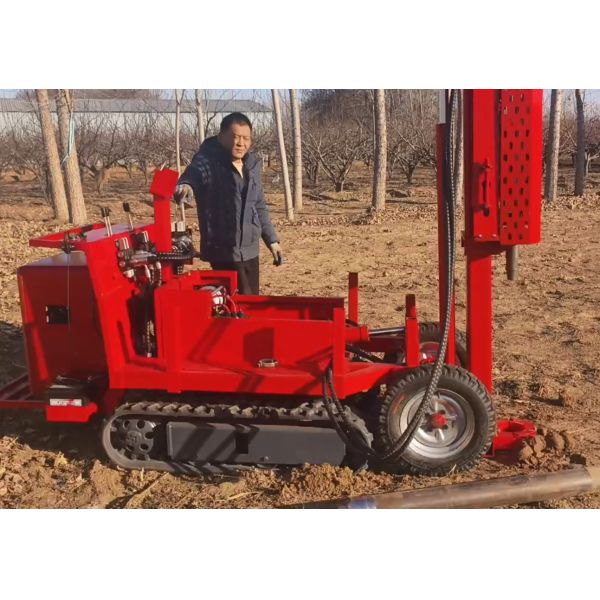

The ST30 tracked hydraulic sampling drilling rig is a new - type, high - efficiency, and multifunctional sampling drilling rig. It has a compact structure, is small and flexible, has multiple steering modes, is flexible in steering, and has strong passability. It adopts an air - cooled twin - cylinder diesel engine with sufficient power and high working efficiency. At the same time, it is equipped with automatic SPT drilling, which saves time and effort.

Main paramete

Product Name	ST30 tracked hydraulic sampling drilling rig
Drilling Depth	30m
Drilling Hole Diameter	120mm
Drilling Rod Diameter	60mm
Drilling method	hitting
SPT wight	63.5kg
Power	diesel engine
Size	28001001600mm
Using	Coring
Wight	1T

Features:

Compact structure, small volume, light weight, strong decomposability, easy to relocate, suitable for work in plains or mountainous areas.
Suitable for engineering geological survey of industrial and civil construction, railway,hydropower, transportation, bridge,dam foundation and other buildings.
Customized to your specific needs. We offer a range of options, including different drilling depths and power supply options.

Packing and Shipping:

Coring Drilling Machine
Instruction Manual
Drill Bits/Drill pipe,SPT and others

Shipping:

Product will be shipped within 3-7 business days after order confirmation.
Shipping cost will be calculated based on the delivery address.
Delivery time may vary depending on the destination.
Tracking information will be provided once the product is shipped.
